P8-C

2 ways surround cinema ceiling speaker for 3D immersive systems.

Equipped with a low-mid frequencies 8” (20 cm) loudspeaker and a 1” coaxial high frequency driver.
This loudspeaker is designed for overhead channels among immersive systems.
The enclosure can be oriented either in X or Y way with the dedicated wall mount and bracket.
Room size : 50 to 250 seats.
Black textile front mask.

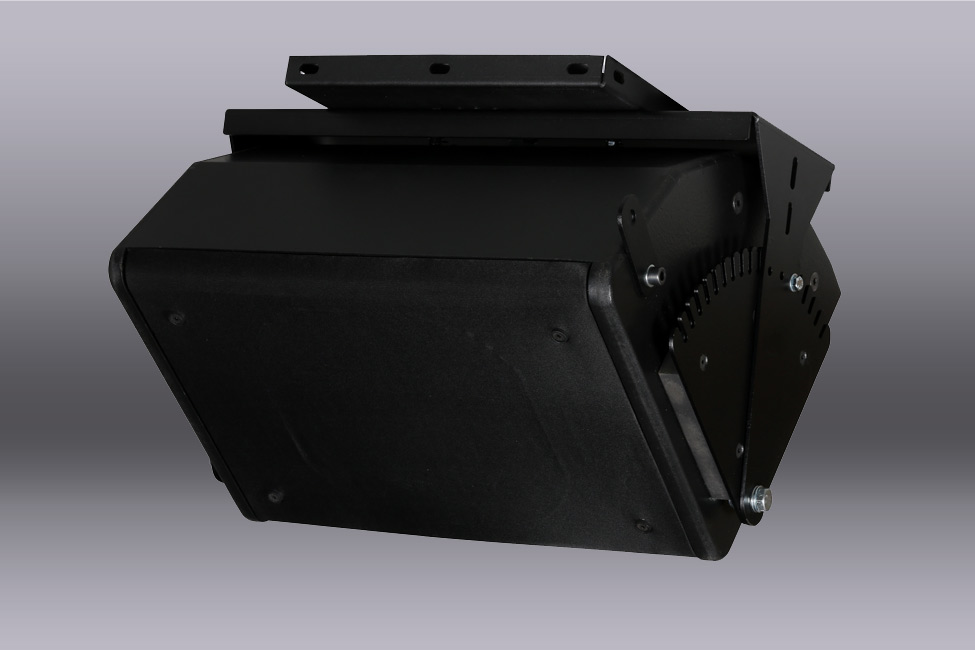

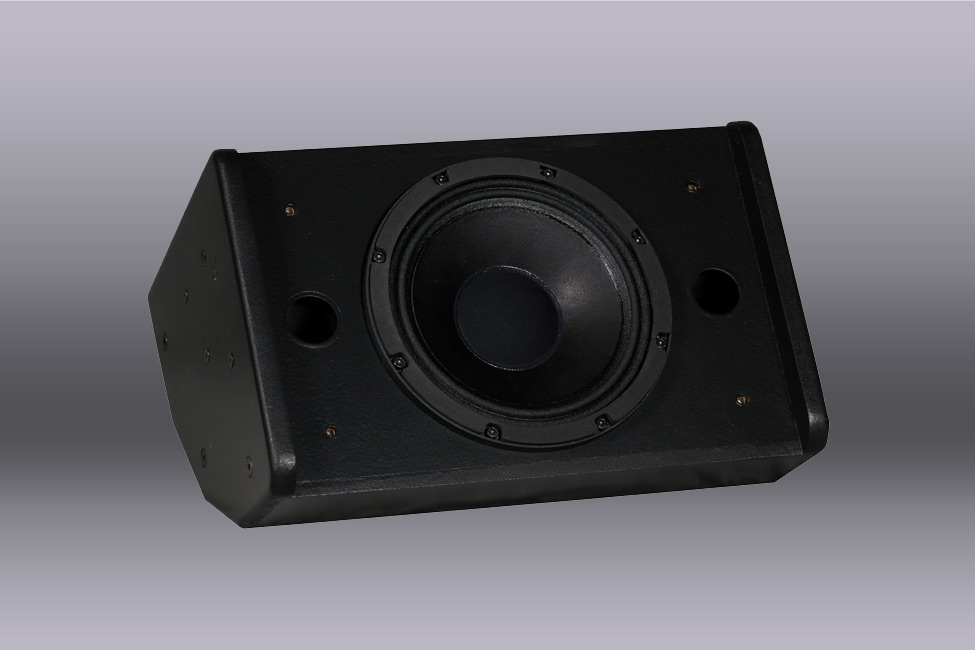

DKaudio: P8C
DKaudio: P8C in real conditions
DATASHEET:
SPECIFICATIONS:

Impedance : 8 ohms
Power capacity: 245 W AES
Efficiency: 98 dB/1W/1m
Bandwidth: 65 Hz to 22 kHz
Low/mid frequency speaker: 8” - 2” coil
mid/high frequency driver: 1” - 1.75” coil
Directivity: 95° conical

DIMENSIONS HxWxD (mm) :
247 x 386 x 247
WEIGHT (Kg) :
16.30
Spare parts, accessories

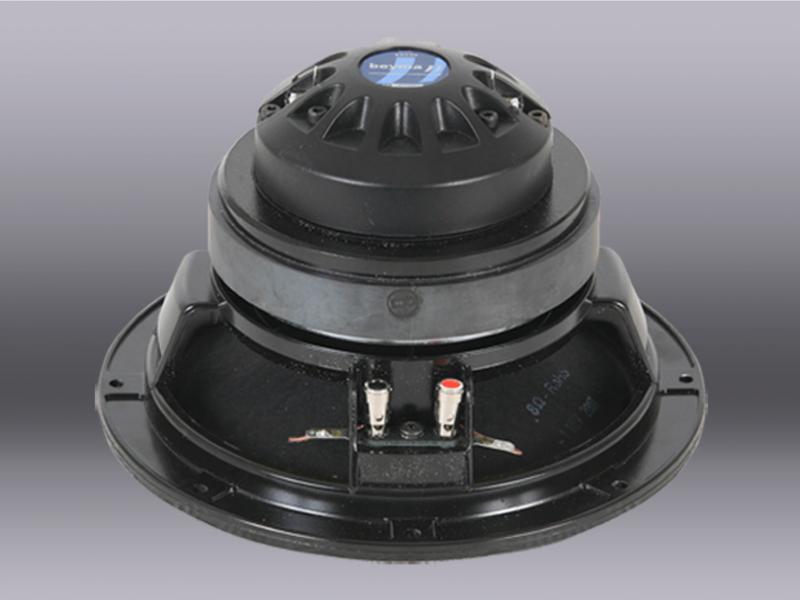

  • DKaudio: 8XC20
    DKaudio: 8XC20

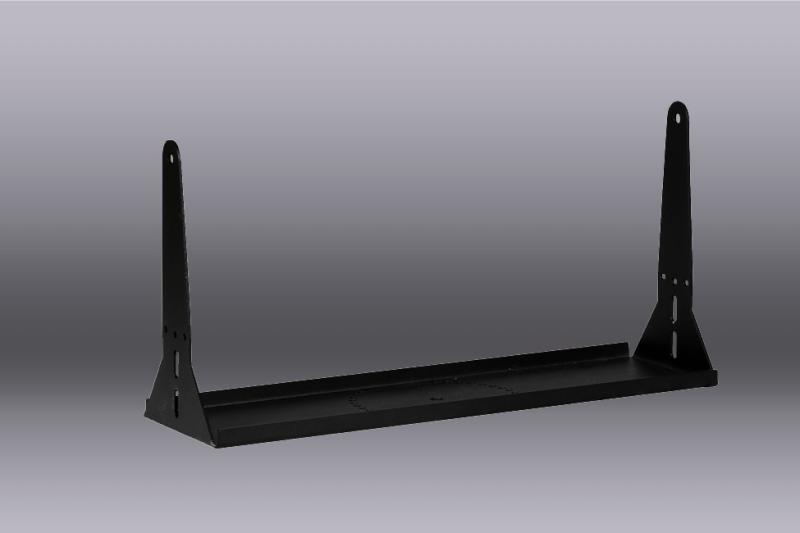

  • DKaudio: P8C bracket
    DKaudio: P8C bracket
