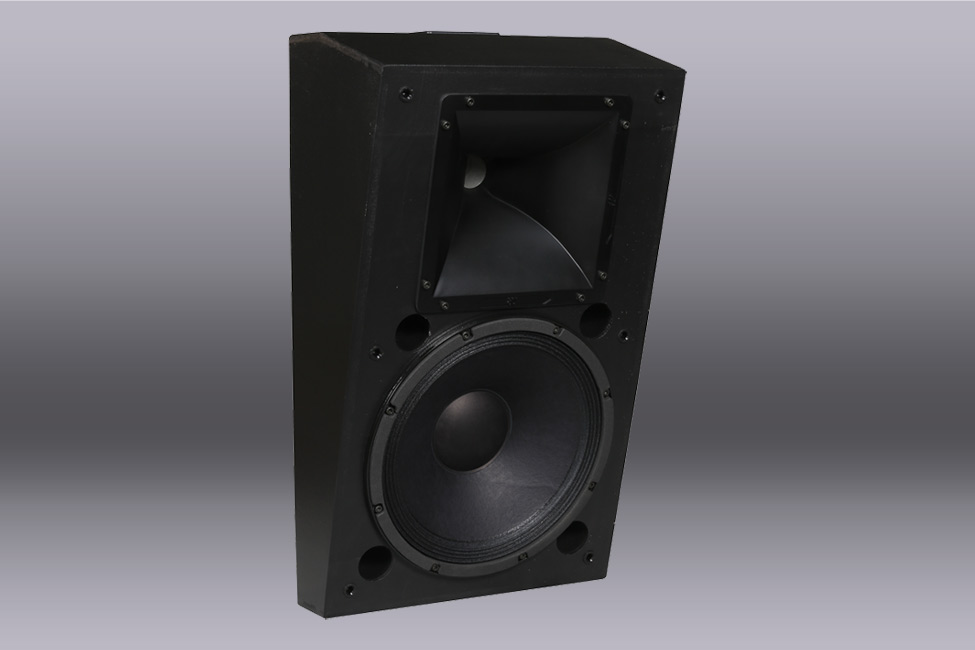

A1214-F

2 way surround speaker designed for immersive 3D systems.
Vertical stacking

Equipped with a 12” (31 cm) low/mid range frequencies speaker, a 1.4” high frequency driver with a 2.87" coil and a horn with a constant profile.
This device has been designed for lateral and rear channels among immersive 3D sound systems. It can be assisted with a bass reinforcement module.
The enclosure can be oriented either in X or Y way with the dedicated wall mount and bracket.
Theater size : 250 to 1500 seats.
Black textile front mask.

DKaudio : A1214F
SPECIFICATIONS:

Impedance: 8 ohms
Power capacity: 510 W AES
Efficiency: 101.5 dB/1W/1m
Bandwidth: 60Hz to 21kHz
Low frequency speaker: 12”
High frequency driver: 1.4”
Directivity: 90° x 50°

DIMENSIONS HxWxD (mm) :
632 x 370 x 343.5
WEIGHT (Kg) :
25.20
Spare parts, accessories:

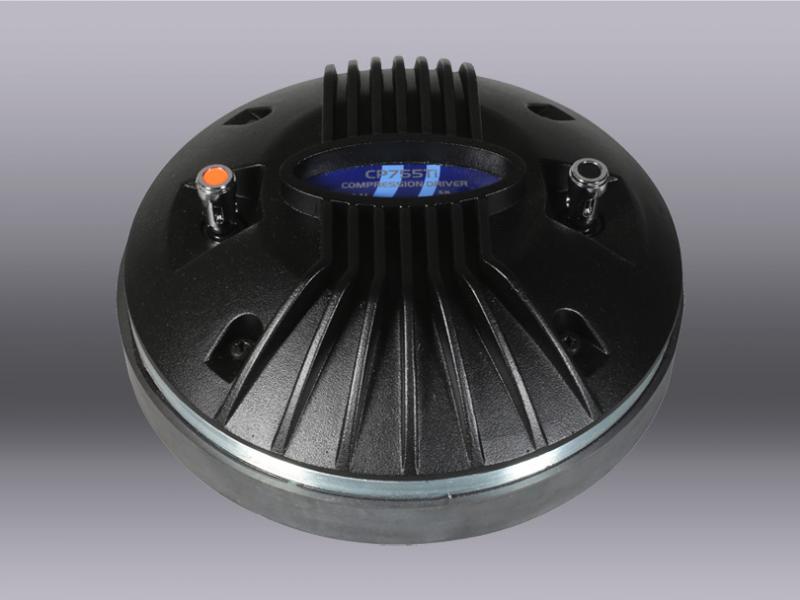

  • DKaudio: CP755Ti
    DKaudio: CP755Ti
  • DKaudio: 12B34
    DKaudio: 12B34
