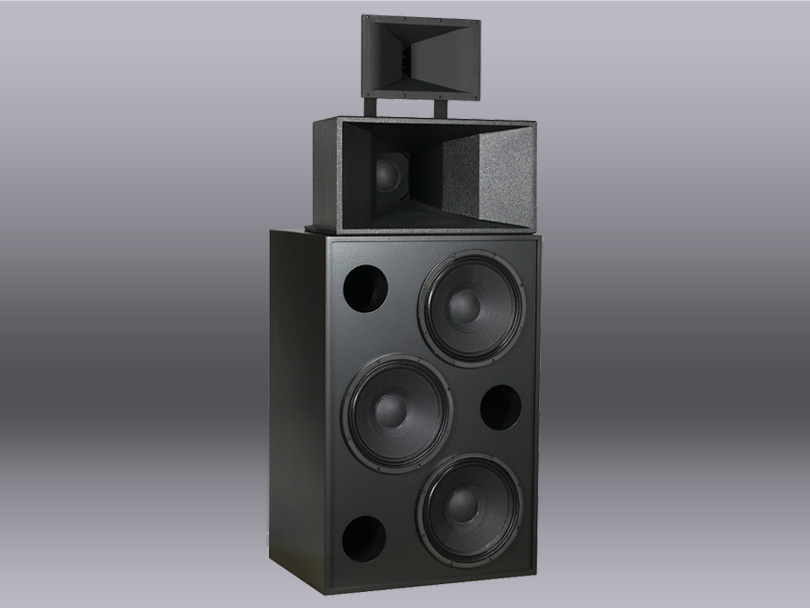

E315-10-433

Cinema 3 way screen system:

This system is made up of specialised and optimised sound diffusion modules in the different frequency bands required for the complete reproduction of the audio spectrum that the human ear can pick up.

The speakers are configured from modular sub-assemblies working in quadri, tri, or bi-amplification with the addition of a passive filter between the mid and high ranges and even, upon request, in mono-amplification; in this case they only need a simple amp channel and work without an additional processor.

See datasheet for details.

DKaudio: E315-10-433
SPECIFICATIONS:

Impedance: 3 ohms / 8 ohms / 8 ohms
Power capacity: 1800 / 300 / 120 W AES
Efficiency: 103 / 108 / 110 dB/1W/1m
Bandwidth: 30Hz à 18kHz
Low frequency speakers: 3 x 15” - 4” coil
Mid-range frequency speaker: 10” - 3” coil - Exponential horn
High frequency driver: 2” - 3” coil
Directivity: 90° x 40°
Range: 35.55 meters
Room size (seats): 150 to 450

DIMENSIONS HxWxD (mm) :
1845 x 760 x 570
WEIGHT (Kg) :
183.70 Kg
Spare parts, accessories:

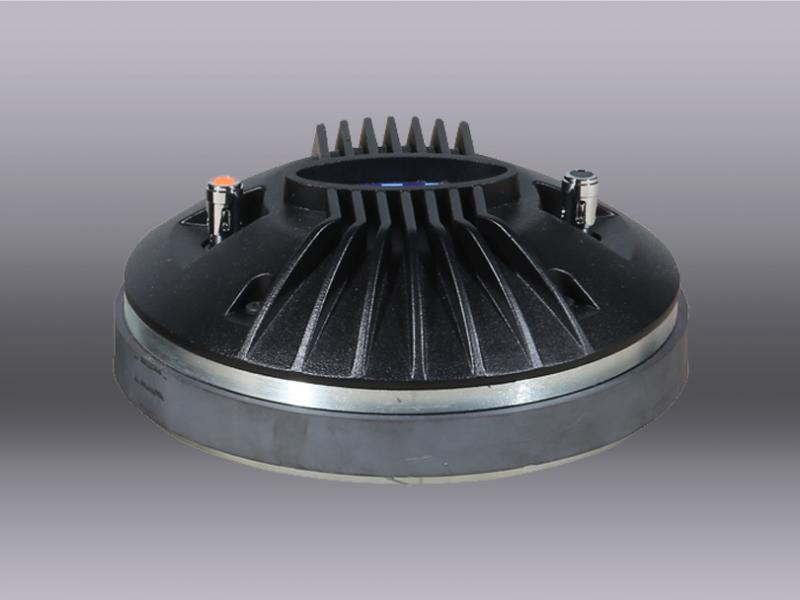

  • DKaudio: CP750Ti
    DKaudio: CP750Ti

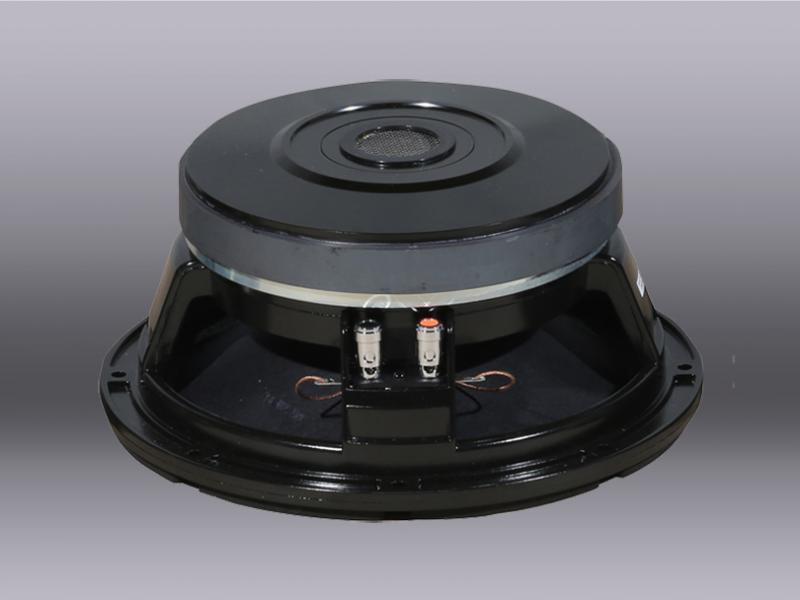

  • DKaudio: 10BM32
    DKaudio: 10BM32

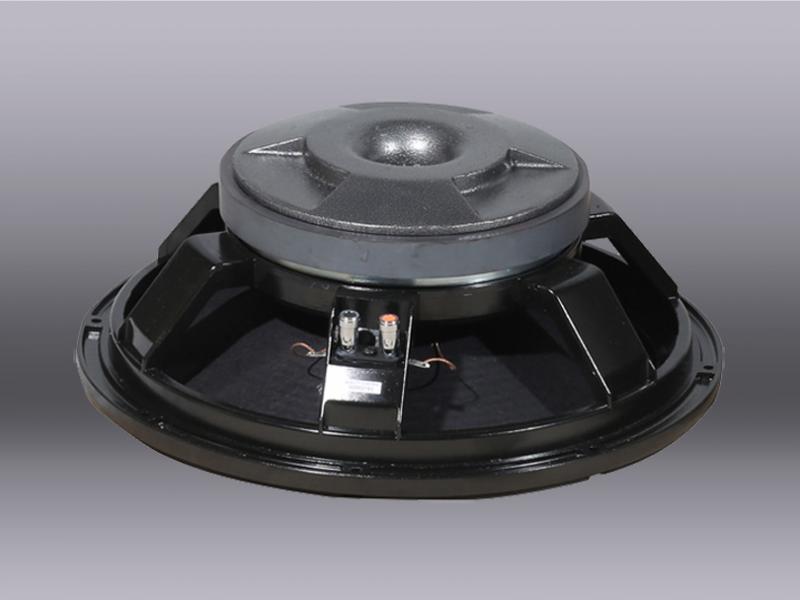

  • DKaudio: 15B42
    DKaudio: 15B42
